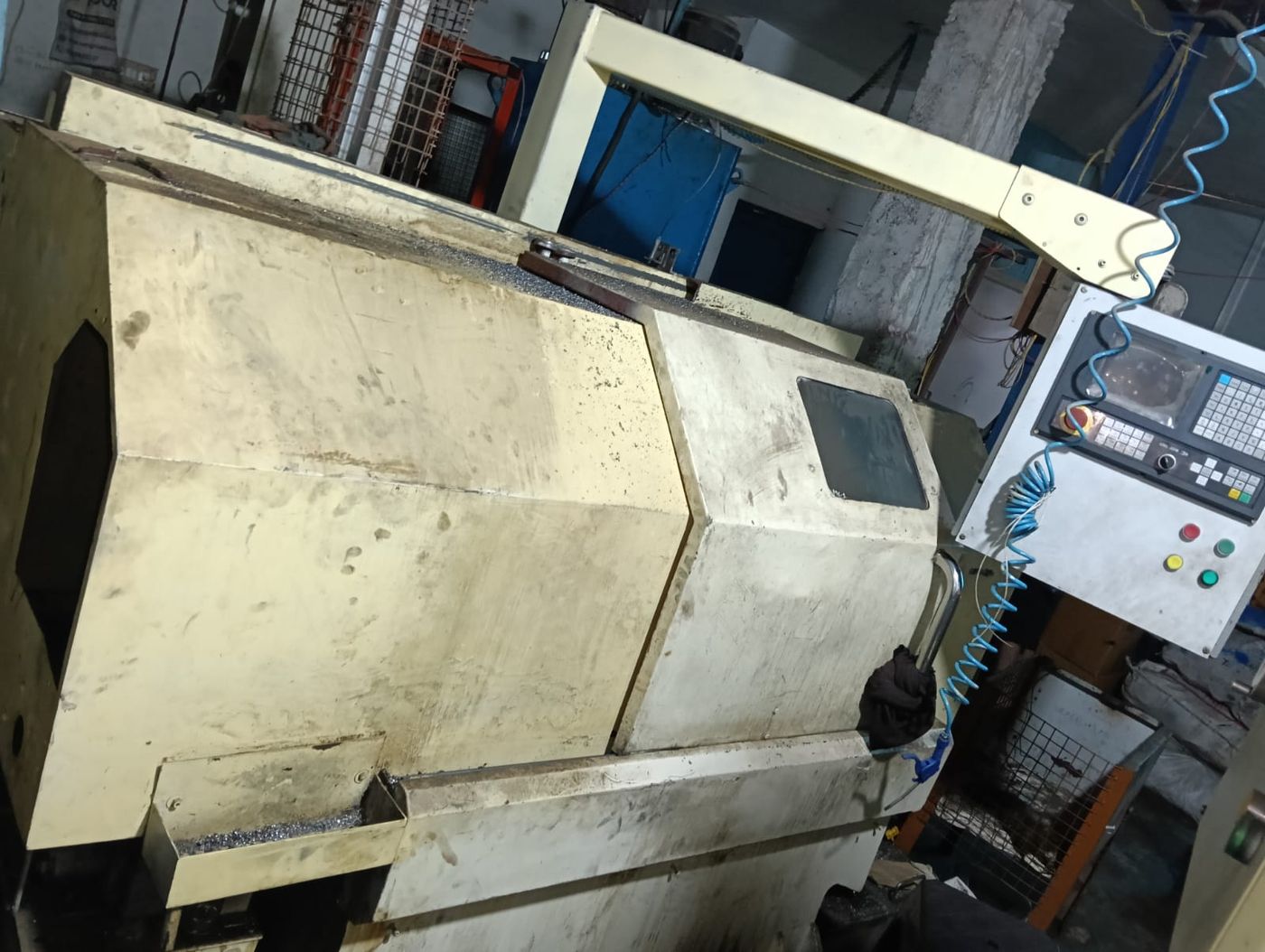

Two CNC lathes in Sanjay Colony, Sector 23, Faridabad, available for production job work — aluminium die-cast components (ADC12), forged parts and casting machining. Turning, boring, grooving and facing to your drawing. Rates start at ₹3 per minute of cycle time; final rate is fixed per part after we run your sample. Our own background is CNC production — Fanuc controls, automotive components — so we quote from experience, not guesswork.
Free site visit and quotation across Faridabad, Ballabgarh, Palwal, Gurugram, Delhi NCR, Noida, Ghaziabad and Manesar. Looking for a CNC job work shop near you? Call +91 90154 04168 — same-day reply, or send your drawing on WhatsApp.

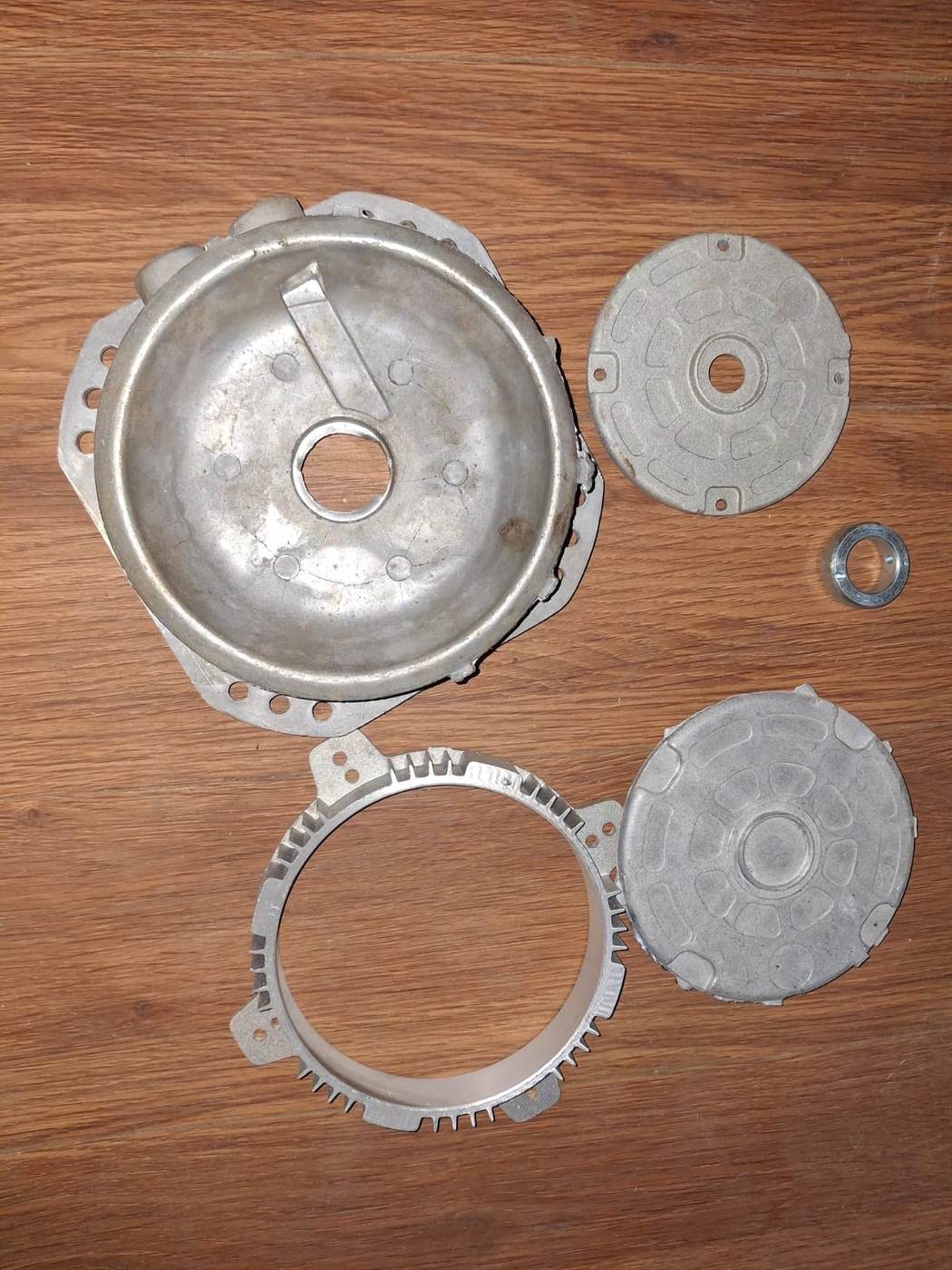

Aluminium pressure die-cast components — ADC12 and similar alloys — plus forged and cast parts in steel and iron. Turning, boring, grooving, facing and chamfering to your drawing. Typical work: automotive housings, motor components, pulleys, bushes, flanges and fittings. If your part fits a lathe chuck and has a drawing, send it.
Job work starts at ₹3 per minute of machine cycle time. We run your sample piece first, time the cycle honestly, and fix a per-piece rate you can put in your costing — no surprises after the first lot. For steady monthly volumes the per-piece rate comes down with cycle optimisation, because a faster program is money in both our pockets.

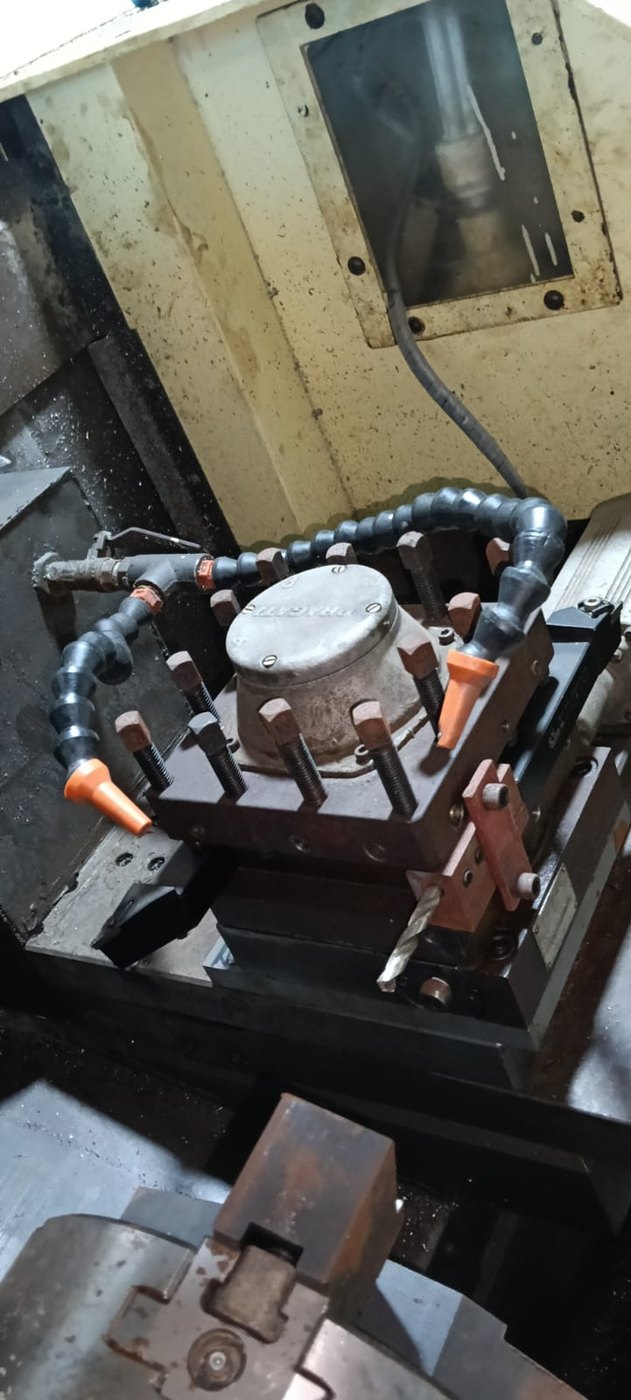

The machines are run by people who did CNC production for automotive suppliers — Fanuc G-code written in-house, tooling ground to the part, first-piece approval against the drawing before the lot starts. Two machines means your delivery does not stop when one is loaded. And we are in Sector 23, Faridabad — you can walk in, see your part running, and carry the lot back the same day.
Two CNC lathes running production shifts. Small lots of 100 pieces to scheduled monthly contracts. Material can be yours or ours. GST invoice with every dispatch, and lot traceability if your customer audits.
| Material | Typical parts | Operations |
|---|---|---|
| ADC12 aluminium pressure die-cast | Motor end shields, housings, covers, pulleys, bushes | Turning, boring to bearing fit, facing, chamfer, grooving |
| Forged steel | Shafts, flanges, yokes, gear blanks | Rough and finish turning, boring, threading |
| Cast iron & SG iron | Pump bodies, brackets, end covers | Facing, boring, seat machining, grooving |
| Brass & copper | Fittings, terminals, bushes | Turning, threading, parting |
If your component fits a lathe chuck and has a drawing, send it. We are set up for production job work — repeat lots with a fixed cycle — rather than one-off tool-room jobs, because that is where a per-minute rate makes sense for both sides.
At ₹3 per minute, a part with a 90-second cycle costs ₹4.50 in machine time. Your real per-piece cost also carries setup amortised over the lot, tooling and material if we supply it — which is why we quote a fixed per-piece rate after running your sample, not a rate card you have to do arithmetic on.
Longer cycles get cheaper per piece as the lot grows, because setup is spread thinner and the program gets tuned. On repeat monthly volumes we go back into the program and cut air-cutting time — a 90-second cycle brought to 70 seconds is money in both pockets, and we pass part of it back.
What we do not do is quote low and discover the cycle later. The sample runs first, the stopwatch is honest, and the rate you get is the rate that holds.
Die-casting units in Faridabad and Ballabgarh who cast well but do not want a machining line. Forging shops that need turning after heat treat. Cooler and motor assemblers — we machine end shields and housings for our own motor line, so the tolerances are already familiar. Automotive tier-2 suppliers who need overflow capacity when their own machines are loaded.
We are in Sector 23, Faridabad — Ballabgarh, Palwal, Gurugram, Manesar, Okhla and Noida are all a short haul, and you can walk in, see the first piece checked against your drawing, and carry the lot back the same day.
From Rs 3 per minute of cycle time. We run your sample, time the cycle and fix a per-piece rate before the lot starts.
Aluminium die-cast (ADC12 and similar), forged steel components and iron castings.
Around 100 pieces for job work lots. Scheduled monthly contracts are preferred and priced better.
Yes. First piece is checked against your drawing and approved before the lot runs.
MCF 5585, Sanjay Colony, Sector 23, Faridabad — visitors welcome, see your part running.
